Optical Ball Lenses: Applications and Advantages

Introduction to Ball Lenses

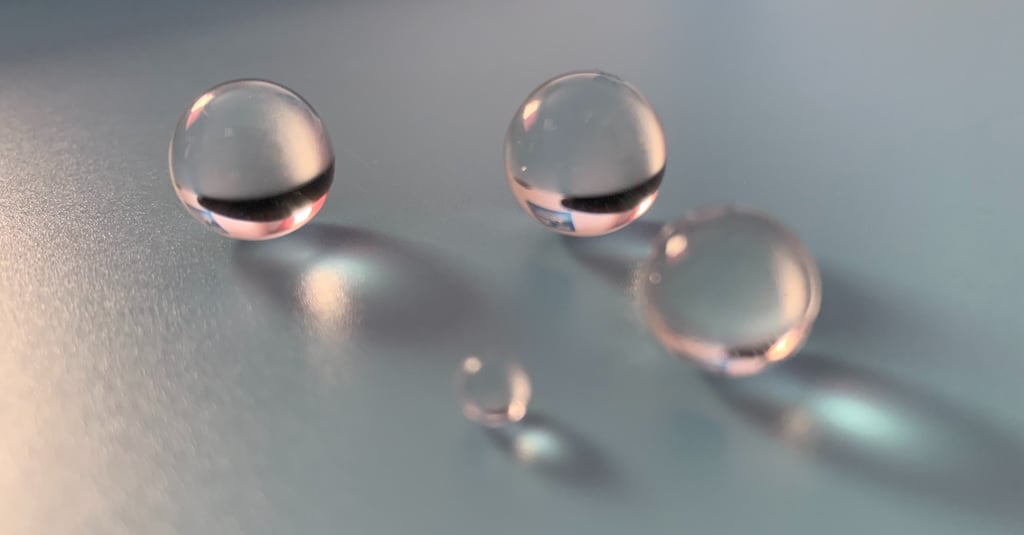

Ball lenses have become a pivotal component in various optical applications, particularly in improving signal quality within fiber coupling applications. Their unique properties, such as short back focal lengths, make them especially suitable for minimizing the distance between the ball lens and the optical fiber. This feature proves to be beneficial for applications ranging from endoscopy to barcode scanning, where precision optics are essential.

Diameter (mm): 1-400mm
Substrate: Fused Silica (Corning 7980), BK7, sapphire, CaF2...
Coating: Uncoated or Coated
Wavelength Range (nm): 200 - 2200
Index of Refraction nd: 1.458
Sphericity (μm): 0.625
Surface: Polishing

Applications of Ball Lenses

In the realm of fiber optics, the primary advantage of using ball lenses lies in their capability to greatly enhance signal transmission. By providing a high degree of light coupling efficiency, these lenses ensure that the maximum amount of light is transmitted through the optical fiber. This is crucial in scenarios where data integrity and clarity are of utmost importance. Beyond fiber coupling, ball lenses play an integral role in endoscopy, where they facilitate the capture of high-resolution images within tight spaces.

Furthermore, the adaptability of ball lenses extends to barcode scanning applications. With their ability to focus light efficiently, ball lenses contribute to improving the accuracy and speed at which barcodes are read. In industries relying on rapid inventory checks and retail management, the use of ball lenses can significantly streamline operations.

Diverse Range of Ball Lenses from Edmund Optics

Changchun Positive Optics recognizes the growing demand for high-quality ball lenses and thus offers a diverse selection in various substrates, catering to a broad spectrum of wavelengths from ultraviolet to near-infrared (NIR). This range ensures that customers can choose a ball lens that aligns precisely with their application prerequisites, maximizing performance. Additionally, half-ball lenses are also available from Edmund Optics, addressing the mounting requirements and system integration challenges that can arise in complex optical setups.

In conclusion, ball lenses are indispensable tools that significantly enhance performance across multiple applications. Their engineering not only minimizes the distance needed for effective signal transmission but also ensures that optical systems achieve enhanced clarity and efficiency. As optical technologies continue to evolve, utilizing ball lenses will remain a critical aspect of developing high-performance optical solutions.
